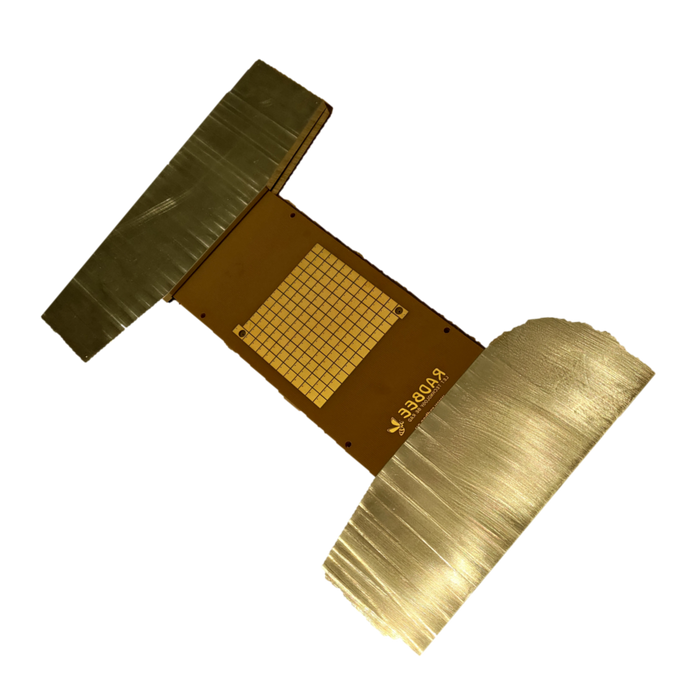

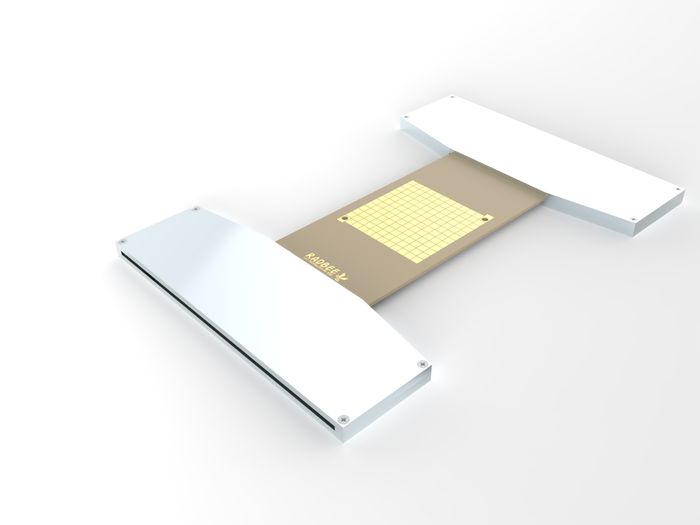

Current Density & Temperature Monitor Board is a specialized tool, designed to measure critical parameters inside the fuel cell with precision and reliability. Its quick and easy assembly makes it ideal for both research and testing environments, ensuring consistent reproducibility and robust quality assurance.

Optimized for MEA (Membrane Electrode Assembly) and bipolar plate research, this board supports experiments under realistic operating conditions. Its compatibility with liquid cooling and heating systems allows accurate monitoring at temperatures of up to 90 °C (up to 180 °C upon request), while its modular design makes it expandable for full stack testing.

Technical highlights:

✓ Up to 90 °C or 180 °C upon request
✓ Optional grid size - size of the cell inside of grid only 6 × 6 mm
✓ Data frequency XX Hz

Key benefits:

✓ Quick and easy assembly
✓ Reliable reproducibility & quality assurance
✓ Designed for MEA and bipolar plate research
✓ Compatible with liquid cooling/heating

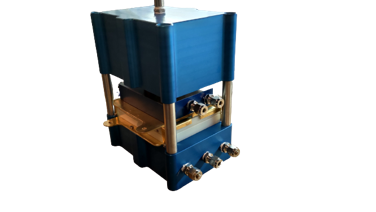

✓ Expandable for stack testing
