Hydrogen Technology World Expo
15 Sept 2025

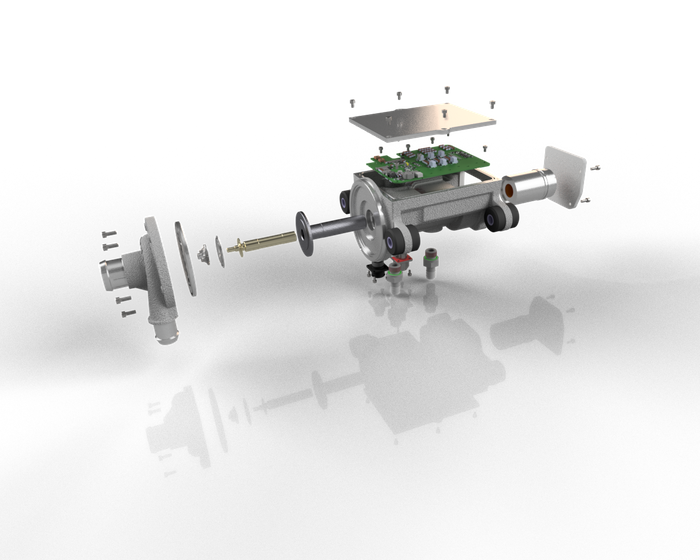

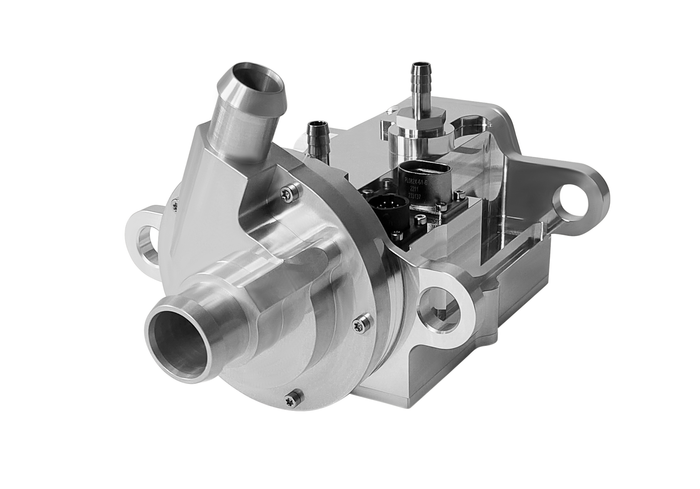

Fuel cell air compressor CTi-110x
)
)
)
)
- Up to 13 g/s of oil fee air at a pressure ratio of 1.9
- Turbo compressor with aerodynamic optimization and integration of power electronics for highest total efficiency and lowest ratio of volume and weight versus pressure and mass flow
- Aerodynamic variants available for pressure ratios from 1.6 to 1.9 at mass flows ranging from 8 to 18 g/s
- High-speed gas bearings for oil free operation
- Continuous and non-pulsing air supply
- Designed for 48 V, 80 V or 96 V nominal battery voltage (unrestricted operation for DC input voltage 40 - 110 V)
)
)
)
