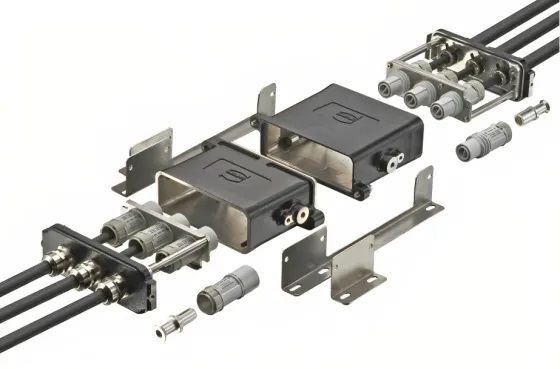

High Power Connectors for Hydrogen Applications (Han®-HC Modular)
)
The modular high power connectors are available in large number of variants. The connectors are used for transmission of high current.They have high protection against electric shock.
- Features
- Contacts for fine stranded wires
- Low mating forces
- Finger safe protection design
- Suitable for various Han® HPR hoods and housings of high protection degree
- Materials
- Hoods & housings: Aluminum die cast, corrosion resistant
- Frames: Stainless steel
- Mounting frames: Aluminum die cast, corrosion resistant
- Inserts: Polycarbonate
- Crimp contacts: Copper alloy
- Specifications
- Approvals: EN 60664-1, IEC 61984, EN 50124-1, DNV GL
- Rated Current: 250A, 350A, 650A
- Limiting temperature: -40°C to +125°C
- Protection degree: IP68, IP69K
- Working life: ≥500 mating cycles
-
Application areas
-
Power transmission for electrolyzer and fuel cell system
-
)
)
)
)
