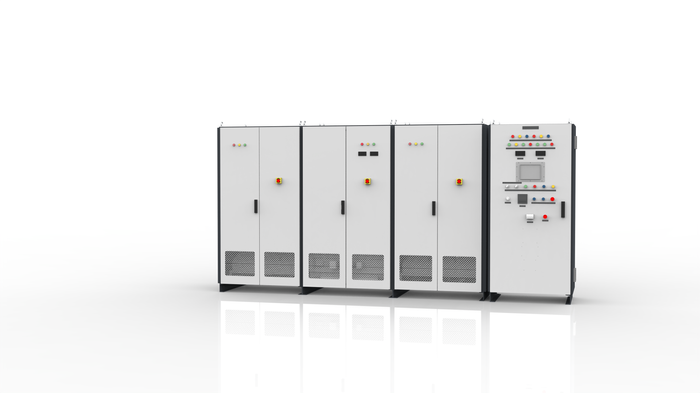

IGBT Converter
)
)
)
)
IGBT Converter Range:
- AC-DC Rectifier – featuring Active Front-End (AFE) Technology
- AC-DC Rectifier – with Active Front-End + Phase Shift Modulation
- DC-DC Rectifier – using Phase Shift Modulation Technology

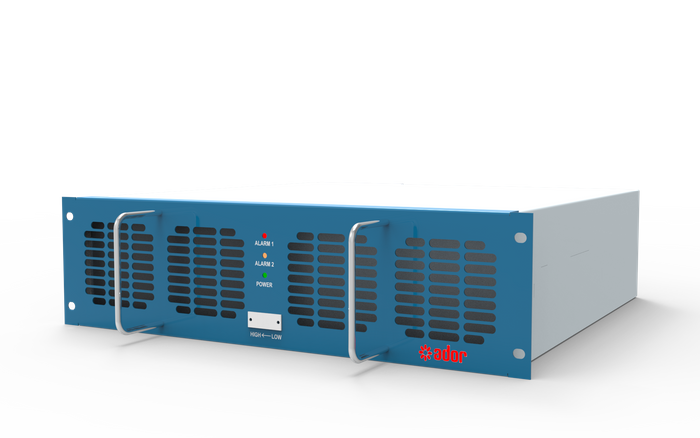

- 30-kW SiC Converters – based on Silicon Carbide for enhanced thermal and electrical performance
Technical Specifications:
- Input Voltage Range: 0.4 – 40 kV (connected to transformer)
- Max Output Voltage / Current: 1000 V / 16,000 A
- Maximum Power: Up to 10 MW (expandable in multiples)
- Power Factor: > 0.99
- THDi: < 3% at rated output and nominal input
- Output Ripple: < 2%
- Efficiency: > 97% at rated output with nominal voltage
)
)
)
)
