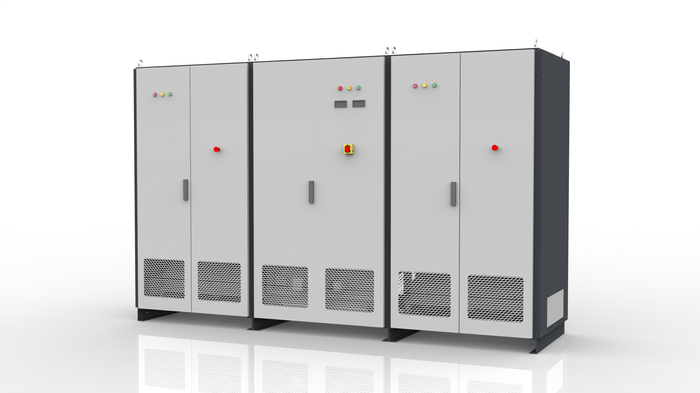

Thyristor Converter
)
Key Advantages:
- High Efficiency
- Superior Load Current Regulation
- Suitable for Rugged Topologies
Technical Specifications:
- Input Voltage Range: 0.4 – 40 kV (connected to transformer)
- Max Output Voltage / Current: 1500 V / 60,000 A
- Maximum Power: 100 MW
- Power Factor: > 0.8 (can exceed 0.9 with passive filter)
- THDi: < 10% (can be reduced to < 5% with passive filter)
- Output Ripple: < 5%
- Efficiency: > 97% at rated output with nominal voltage
)
)
)
)
