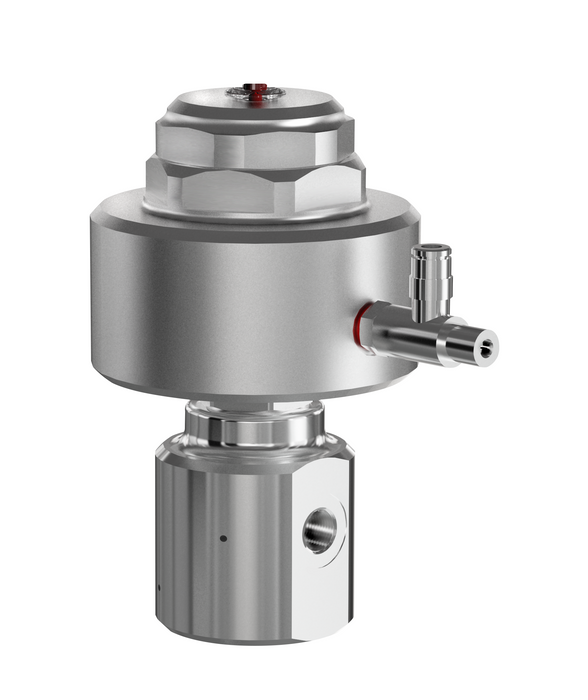

Series 8/100

2/2-way pressure controlled valve for high pressure applications

VALVE FEATURES

• For high pressure applications up to 1200 bar
• Operates without pressure difference
• High durability
• Simple, compact valve design
• High quality materials
• Reliable, resilient sealing elements
• Suitable for hydrogen applications



Pressure 0 - 1200 bar

Medium Clean, neutral gaseous

Temperature range

Medium: -45 °C / +80 °C

Environment: -20 °C / +60 °C

Body material Stainless steel 1.4404

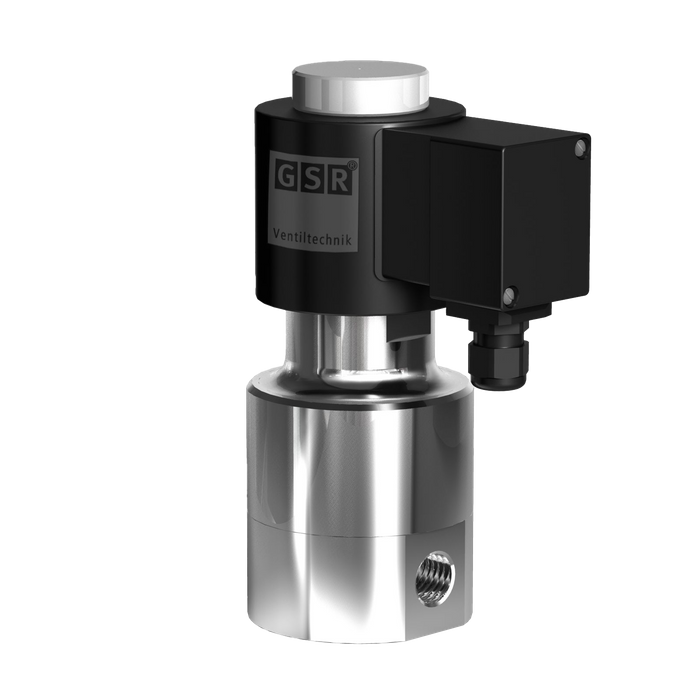

Series 3/071

Solenoid valve for high pressure applications

2/2-way pilot operated piston valve

VALVE FEATURES

• For high pressure applications up to 1000 bar
• Pressure difference is required
• High life time
• High-quality materials
• Reliable and sturdy sealing elements

Pressure 5 - 1000 bar

Medium Clean, neutral gaseous

Temperature range

Medium: -40 °C / +80 °C

Environment: -20 °C / +50 °C

Body material Stainless steel 1.4462, 1.4404

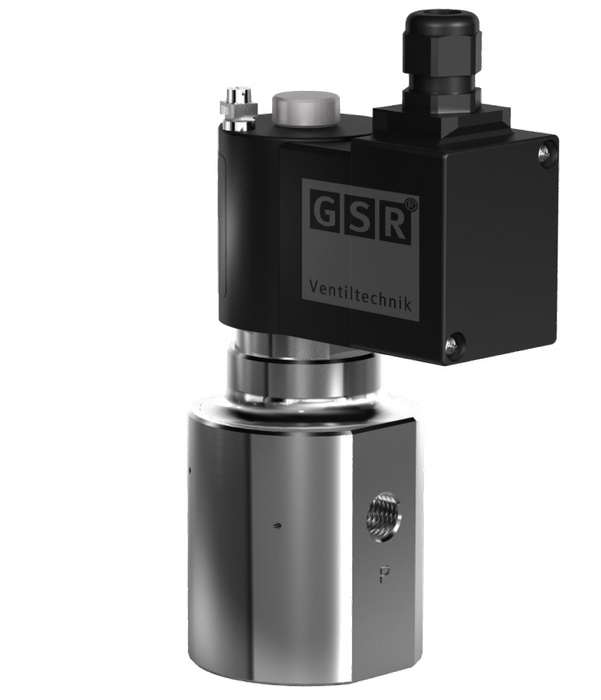

Series 2/529

Solenoid valve for high pressure applications

2/2-way pilot operated piston valve

VALVE FEATURES

• For high pressure applications up to 450 bar
• Pressure difference is required
• High life time
• Simple compact valve design
• High-quality materials
• Reliable and sturdy sealing elements

Medium Clean, neutral gaseous and liquid media

Max. viscosity 22 mm²/s

Temperature range

Medium: -27 °C / +80 °C

Environment: -27 °C / +50 °C T

Body material Stainless steel 1.4571
